YIXIN PRECISION MACHINERY (CHANGZHOU) · YXROD

Chrome-plated shaftsand ground bars

Chrome-plated shafts, induction-hardened shafts, ground and Q&T bars — ground on 12 centerless grinders and heat treated on 4 induction lines at our approximately 6,000 m² site in Changzhou, China.

Email: sales@yxrod.com · WhatsApp: +86 135 2446 2888

≈ 6,000 m²production site in Wujin, Changzhou
12centerless grinders
4induction lines: 2 Q&T, 2 hardening
Ø4–140 mmstandard range, up to Ø200 mm made to order

INDEPENDENT VERIFICATION

Intertek onsite assessment

Production and trading assessed in June 2026, valid to June 2027.

5 lab test reports

Jiangsu Yinshi (CMA, CNAS) and TPM (CNAS), sample bars tested in July 2026; one case-depth report carries no CMA/CNAS mark. Download the reports.

In-house inspection

Mitutoyo micrometers, a coating thickness gauge, a Rockwell hardness tester and a handheld XRF spectrometer; diameter, chrome thickness and surface are re-checked before packing.

See and download the test reports

FEATURED PRODUCT

45 Steel Q&T Ground Round Bar

For sourcing, start with tolerance, then Q&T hardness, and close the loop with order-specific sampling and inspection evidence.

View product and scope
01 · TOLERANCE−0.02 / −0.05 mm

Standard tolerance; 0/−0.02 mm available from Ø12, confirmed by diameter, length and order.

02 · Q&T SURFACE HARDNESSHRC25–28 / 28–32

Two bands, chosen per order; the surface hardness is what we guarantee — grade 45's limited hardenability leaves the core softer.

03 · TESTEDCNAS lab

Chemistry, hardness, tensile and dimensions tested by CNAS-accredited labs; download the full reports on the Quality page.

PROCESS CAPABILITY

Write the tolerance on your drawing. We grind to it.

Chrome thickness, case depth and hardness are confirmed for each size before production and written into the quotation and order.

010.02 mmtolerance band to drawing
0210–50 μmchrome per side, chosen per order
03HV800+chrome hardness capability
04≈ 2 mminduction-hardened case

Typical process capability. Final values for each size are fixed on the confirmed drawing, specification and order.

Workshop interior (from the Intertek 360° capture)
Yixin workshop, Wujin, Changzhou

OUR FACTORY

Grinding and induction heat treatment under one roof

Cold drawing, peeling, roll straightening, induction Q&T and hardening, centerless grinding, polishing and CNC cutting all run in the Yixin workshop. Hard chrome plating is done by long-term partner plants to our specification and checked on return.

  • 12centerless grinders
  • 6polishing machines
  • 4induction lines
  • 8CNC saws

WHY YIXIN

Six things you can write into an order and check on site

  1. Grinding and induction heat treatment in-house

    12 centerless grinders (10 × type 80, 2 × type 83) and 4 induction lines (2 Q&T, 2 hardening) on a site of about 6,000 m² in Changzhou.

  2. A clear division of work

    Hard chrome plating and machining are done by long-term partner plants to Yixin's specification, and Yixin re-checks chrome thickness, diameter and surface before packing.

  3. Tolerances you can write into a purchase order

    Ø4–11 mm −0.02/−0.05 mm; from Ø12 mm 0/−0.02, −0.01/−0.03 or −0.02/−0.05 mm; straightness ≈ 0.1 mm/m from Ø25.

  4. Hardness stated by grade and condition

    Grade 45 Q&T surface HRC25–28 or 28–32 (chosen per order), 40Cr Q&T HRC28–35, 42CrMo Q&T HRC30–38; induction-hardened case ≥ HRC55, about 2 mm deep.

  5. Independent evidence

    Onsite production and trading assessment by Intertek (Alibaba.com Verified Supplier), and July 2026 laboratory reports on sample bars, downloadable on our Quality page.

  6. Straightforward export terms

    1 t per order (sizes can be combined), 20–50 kg sample orders, full bars of 4 m, 6 m, 7.5 m or 8.1 m or cut to length, FOB Shanghai or Ningbo, T/T only, with 50% deposit.

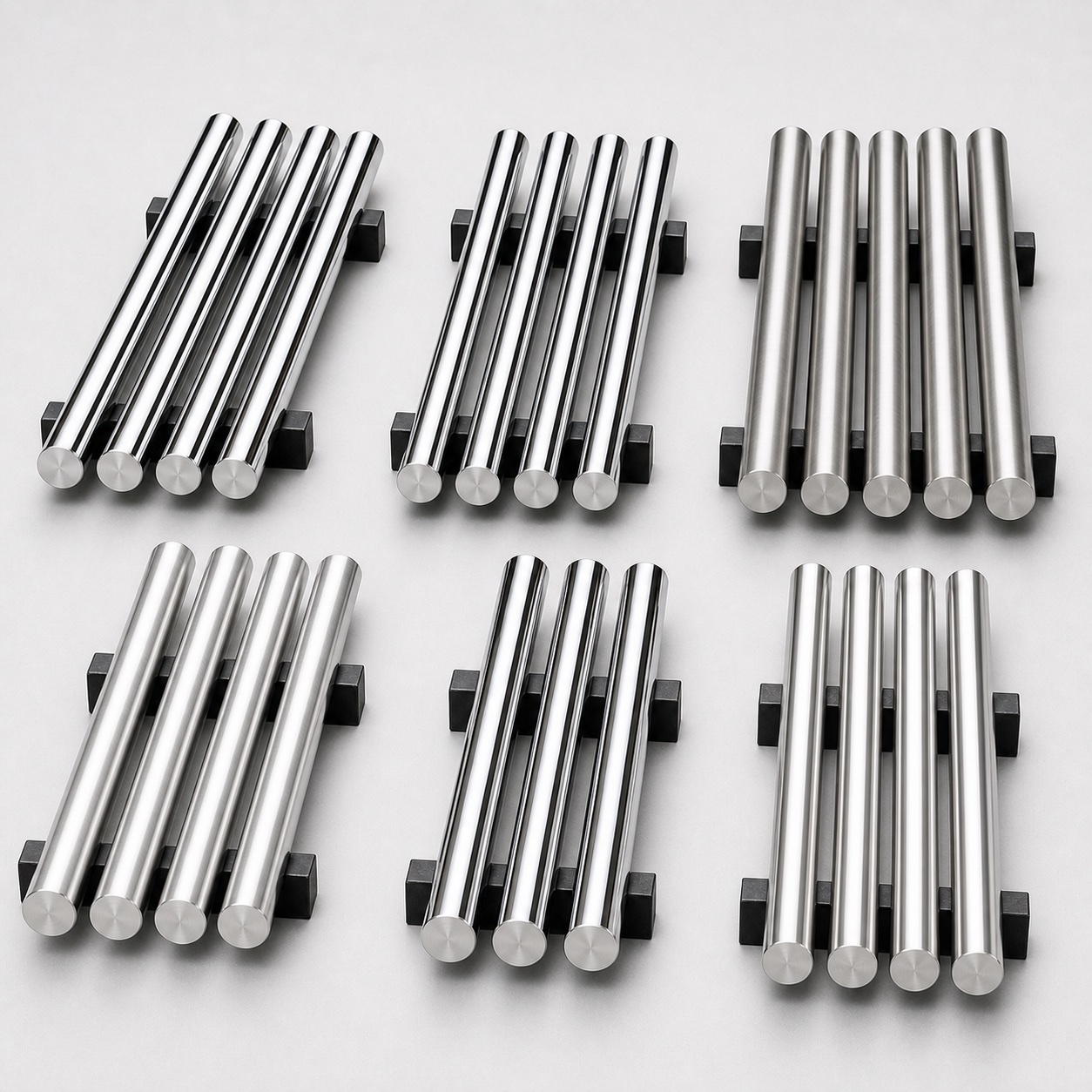

PRODUCTS

Start with material condition and surface treatment

Choose between soft shaft, induction-hardened shaft, ground bar and Q&T series, then confirm tolerance, chrome, hardness and downstream machining.

45 Steel Chrome-Plated Soft ShaftChrome shaft
Chrome shaft45 steel

45 Steel Chrome-Plated Soft Shaft

A chrome-plated shaft without surface induction hardening, suited to applications that still require downstream machining and dimensional confirmation.

View selection notes
45 Steel Induction-Hardened Chrome ShaftChrome shaft
Chrome shaft45 steel

45 Steel Induction-Hardened Chrome Shaft

Induction hardened before hard chrome plating for applications that need higher surface wear resistance and stable guidance.

View selection notes
45 Steel Ground Round BarGround bar
Ground bar45 steel

45 Steel Ground Round Bar

Ground round bar focused on dimensional control, straightness and surface finish for further machining and shaft production.

View selection notes
45 Steel Q&T Ground Round BarQ&T series
Q&T series45 steel, quenched and tempered

45 Steel Q&T Ground Round Bar

Quenched-and-tempered ground bar for orders that need balanced mechanical properties and room for downstream machining.

View selection notes
45 Steel Q&T Chrome-Plated BarQ&T series
Q&T series45 steel, quenched and tempered

45 Steel Q&T Chrome-Plated Bar

Quenched-and-tempered base material finished with hard chrome for combined core properties, dimensional control and surface wear resistance.

View selection notes
40Cr Q&T Ground Round BarQ&T series
Q&T series40Cr, quenched and tempered

40Cr Q&T Ground Round Bar

Ground bar for shaft orders specifying 40Cr in a quenched-and-tempered condition, with dimensions and hardness agreed per order.

View selection notes
View all 9 product types

SOFT OR HARDENED?

Choose by machining needs and surface wear requirements — not by name alone

Chrome-plated soft shaft
A

Chrome-plated soft shaft

No surface induction hardening, leaving more flexibility for turning, milling or drilling after supply.

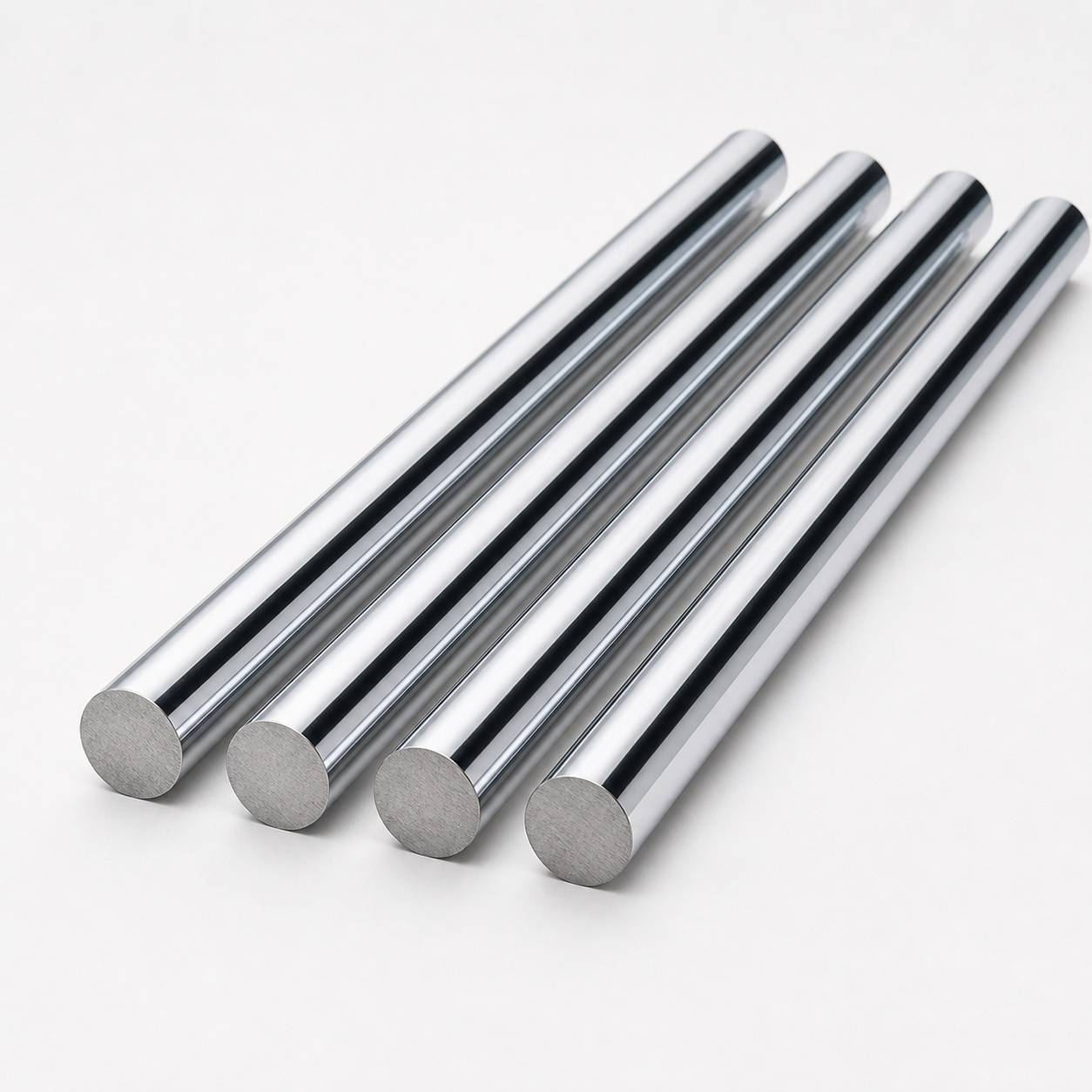

Induction-hardened chrome shaft
B

Induction-hardened chrome shaft

Induction hardened before chrome plating for applications where surface wear resistance and guidance stability matter more.

FROM RFQ TO DELIVERY

Put the usual failure points into the confirmation checklist

Bars wrapped in bubble film in a wooden case
Export: bars wrapped in bubble film, in a wooden case

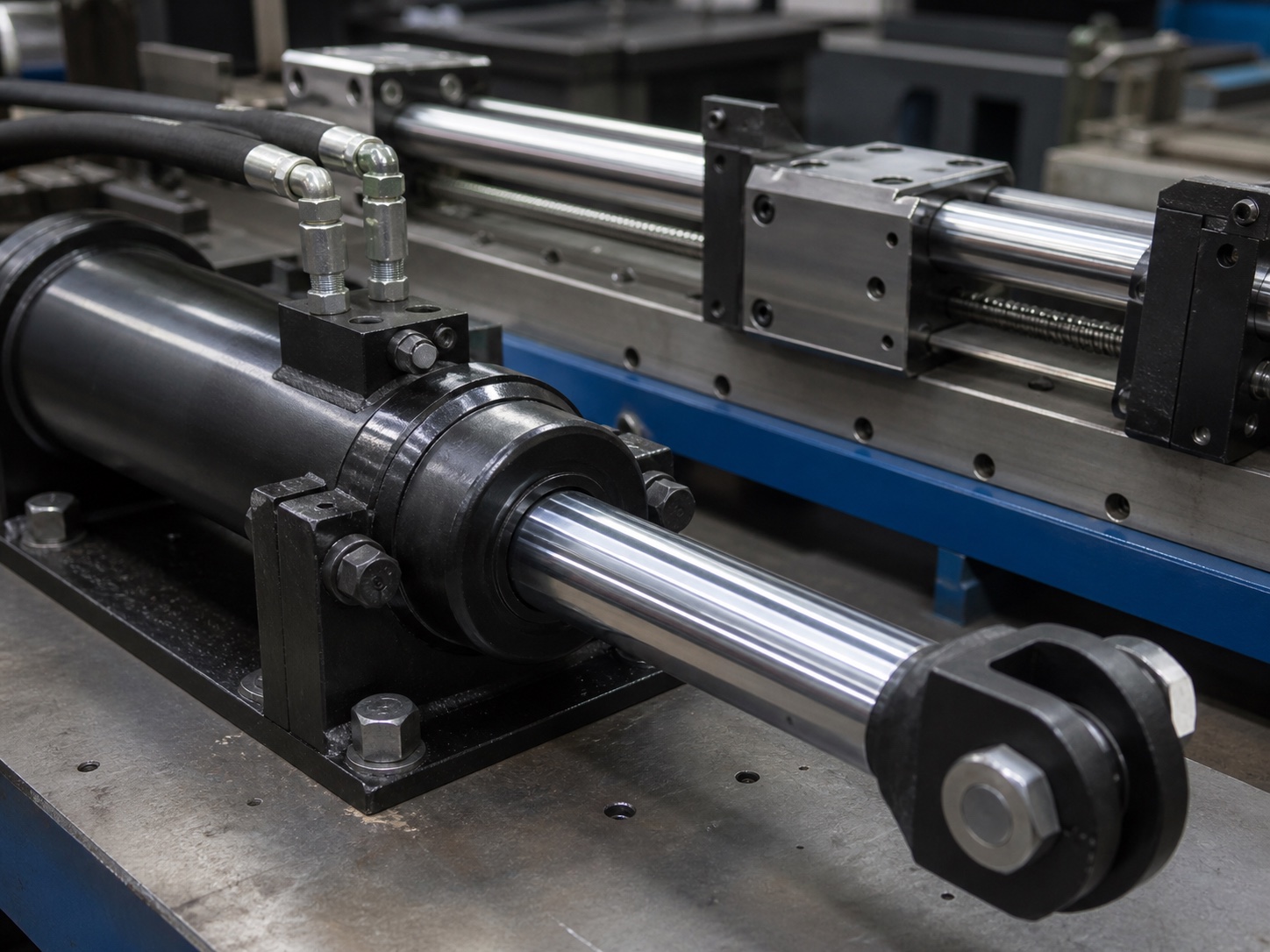

Chrome shafts in hydraulic and linear-motion equipment
  1. 01

    Requirement review

    Confirm application, drawing, dimensions, quantity and inspection items.

  2. 02

    Feasibility check

    Review material condition, tolerances, chrome, case depth and machining scope.

  3. 03

    Order lock-in

    Record agreed values in the quotation, specification or purchase-order notes.

  4. 04

    Inspection & delivery

    Inspect, identify and pack against agreed items with the required traceability.

APPLICATIONS

Work backwards from the operating condition

Hydraulic motion, machine guidance, linear systems and machining stock call for different material conditions and surfaces.

Explore applications

RESOURCES

Download the overview, then prepare the RFQ

The bilingual overview brings together 9 product types, capability boundaries, test results, terms and the RFQ checklist.

Open resources

SERVICE

Export terms

How standard orders are handled. Volume and special requirements are written into the quotation.

Minimum order
1 t per order (different sizes can be combined); 20–50 kg sample orders (the sample fee is refunded with your order; samples go by international express, freight paid by the buyer)
Lead time
Cut-to-length from stock 3–5 days · non-standard diameters 7–10 days · custom heat treatment 10–20 days · 42CrMo 7–10 days, plus sea-freight booking; thicker chrome layers are quoted per order
Trade & payment
FOB Shanghai or Ningbo · T/T only, 50% deposit, balance before shipment (no L/C)
Packing
Export: bars wrapped in bubble film and packed in wooden cases; domestic: bubble film and cotton-rope ties. No steel straps on finished bars, so the surface is not marked; your brand can be printed on the packing
Documents
Commercial invoice, packing list and steel mill certificate for each heat (forwarded unaltered); certificate of origin arranged per order; third-party inspection on request
Response
Quotation reply within one working day

BUYER FAQ

Clear answers to the questions buyers ask first

Use these answers for early screening. Final technical requirements remain subject to the confirmed drawing, specification and order.

01How do I choose between a soft and hardened chrome shaft?

A soft shaft has no surface induction hardening and leaves more flexibility for downstream machining. A hardened shaft is induction hardened to a case of about 2 mm before chrome plating, for greater wear resistance and guidance stability. Final selection depends on the application and drawing.

02What tolerances can you grind to?

Ø4–11 mm: −0.02/−0.05 mm as standard. Ø12 mm and up: 0/−0.02, −0.01/−0.03 or −0.02/−0.05 mm. Other tolerance bands are reviewed against your drawing.

03How thick is the hard chrome?

10–50 μm per side, chosen per order (lead time for thicker layers is quoted per order), and chrome hardness can reach HV800+. Salt-spray performance is not part of the standard specification. Where a rating is required, we specify a thicker chrome layer and can have the order tested by a third-party laboratory.

04What are your lead times?

Cut-to-length from stock: 3–5 days. Non-standard diameters: 7–10 days. Custom heat treatment: 10–20 days. 42CrMo: 7–10 days. Sea-freight booking time is added.

05What information should an RFQ include?

Product type, material or reference grade, diameter, length, quantity, tolerance, surface treatment, application and contact details. Attach a drawing where available.

See all 17 questions

READY TO INQUIRE

Send a size list or drawing. We reply with grade, tolerance, chrome thickness and lead time.
