QUALITY & TESTING

Checked by others, not just by us

An independent onsite assessment, CNAS-lab test reports, in-house checks at every handover, and specifications you can write straight into a purchase order.

INDEPENDENT VERIFICATION

Issuer, scope, date and reference — on the record

The test reports below are complete copies you can download. Results apply to the sample bars submitted.

CMA · CNAS L18906

Material properties and case depth

Jiangsu Yinshi Inspection & Testing Co., Ltd.

45 steel and 40Cr Q&T ground bars: chemical composition, Vickers and Rockwell hardness, tensile test. 45 steel induction-hardened chrome shaft: effective case depth (this report carries no CMA/CNAS mark). Each report has a QR code for verification with the laboratory.

Date
July 2026
Reference
2026-YS-26070183118-1 · -2 · -3-2

Measured on the submitted samples

SampleItemResultReport
45 steel induction-hardened chrome shaftEffective case depthSHD475 = 1.91 mm; HV1 757–783 at 0.1–0.8 mm below the surface2026-YS-26070183118-3-2
40Cr Q&T ground barTensile testRm 1051 MPa, Rp0.2 920 MPa, elongation 18.5%, reduction of area 63%2026-YS-26070183118-2
40Cr Q&T ground barCore hardnessHRC 34.8 / 35.1 / 35.62026-YS-26070183118-2
40Cr Q&T ground barChemical composition (%)C 0.40, Si 0.24, Mn 0.64, Cr 0.91, P 0.009, S 0.0062026-YS-26070183118-2
40Cr Q&T ground barRoughness and roundnessRa 0.284 μm; roundness 0.001–0.005 mmTPM-TR 2607015-2
45 steel Q&T ground barSurface hardnessHV10 292.6 / 297.2 / 298.3 (about HRC 29; conversion is approximate)2026-YS-26070183118-1
45 steel Q&T ground barCore hardnessHRC 21.6 / 22.0 / 21.9 (grade 45 has limited hardenability, so the core is softer than the surface — expected)2026-YS-26070183118-1
45 steel Q&T ground barTensile testRm 863 MPa, ReL 576 MPa, elongation 23.0%, reduction of area 57%2026-YS-26070183118-1
45 steel Q&T ground barChemical composition (%)C 0.44, Si 0.25, Mn 0.58, P 0.018, S 0.007, Cr 0.0332026-YS-26070183118-1
45 steel Q&T ground barRoughness and roundnessRa 0.384 μm; roundness 0.004–0.006 mmTPM-TR 2607015-1

Results from single sample bars (about Ø20 × 225 mm) submitted in July 2026. They describe those samples only and are not a guarantee for every delivery; delivery inspection items and acceptance follow your drawing and order. Case depth measured to GB/T 5617-2005 with a limit hardness of 475 HV.

SPECIFICATIONS

Specify it once, and receive the same bar every time

Standard specifications below. Other sizes, tolerances and chrome layers are quoted against your drawing.

Diameter
Standard range Ø4–140 mm, up to Ø200 mm made to order
Tolerance
Ø4–11: −0.02/−0.05 mm · Ø12 and up: 0/−0.02, −0.01/−0.03 or −0.02/−0.05 mm
Straightness
≈ 0.1 mm/m from Ø25 · ≈ 0.2 mm/m below Ø25
Surface roughness
Chrome Ra ≤ 0.4 μm · ground Ra ≤ 0.8 μm
Length
Full bars 4 m, 6 m, 7.5 m or 8.1 m; cut to length from 200 mm (≈ 3 mm allowance)
ProductGradesConditionHardnessHard chrome
Chrome-plated soft shaft45 to GB/T 699-2015 · comparable, for reference only: C45, S45C, SAE 1045Ground and chrome plated, not hardenedBase ≈ HRC1710–50 μm per side, chosen per order
Induction-hardened chrome shaft45 to GB/T 699-2015 · comparable, for reference only: C45, S45C, SAE 1045Induction hardened, then chrome platedCase ≥ HRC55, ≈ 2 mm deep10–50 μm per side, chosen per order
Q&T ground round bar45 (GB/T 699-2015); 40Cr, 42CrMo (GB/T 3077-2015) · comparable, for reference only: C45, S45C, SAE 1045; 41Cr4, SCr440; 42CrMo4, SCM440Q&T, then ground (45 and 40Cr: induction Q&T, roll straightened, centerless ground; 42CrMo to order)45: surface HRC25–28 or 28–32 · 40Cr: HRC28–35 · 42CrMo: HRC30–38—
Q&T chrome-plated bar45 (GB/T 699-2015); 40Cr, 42CrMo (GB/T 3077-2015) · comparable, for reference only: C45, S45C, SAE 1045; 41Cr4, SCr440; 42CrMo4, SCM440Q&T base, then hard chrome45: surface HRC25–28 or 28–32 · 40Cr: HRC28–35 · 42CrMo: HRC30–3810–50 μm per side, chosen per order
Ground round bar45 to GB/T 699-2015 · comparable, for reference only: C45, S45C, SAE 1045Cold drawn or peeled, centerless ground≈ HRC17—

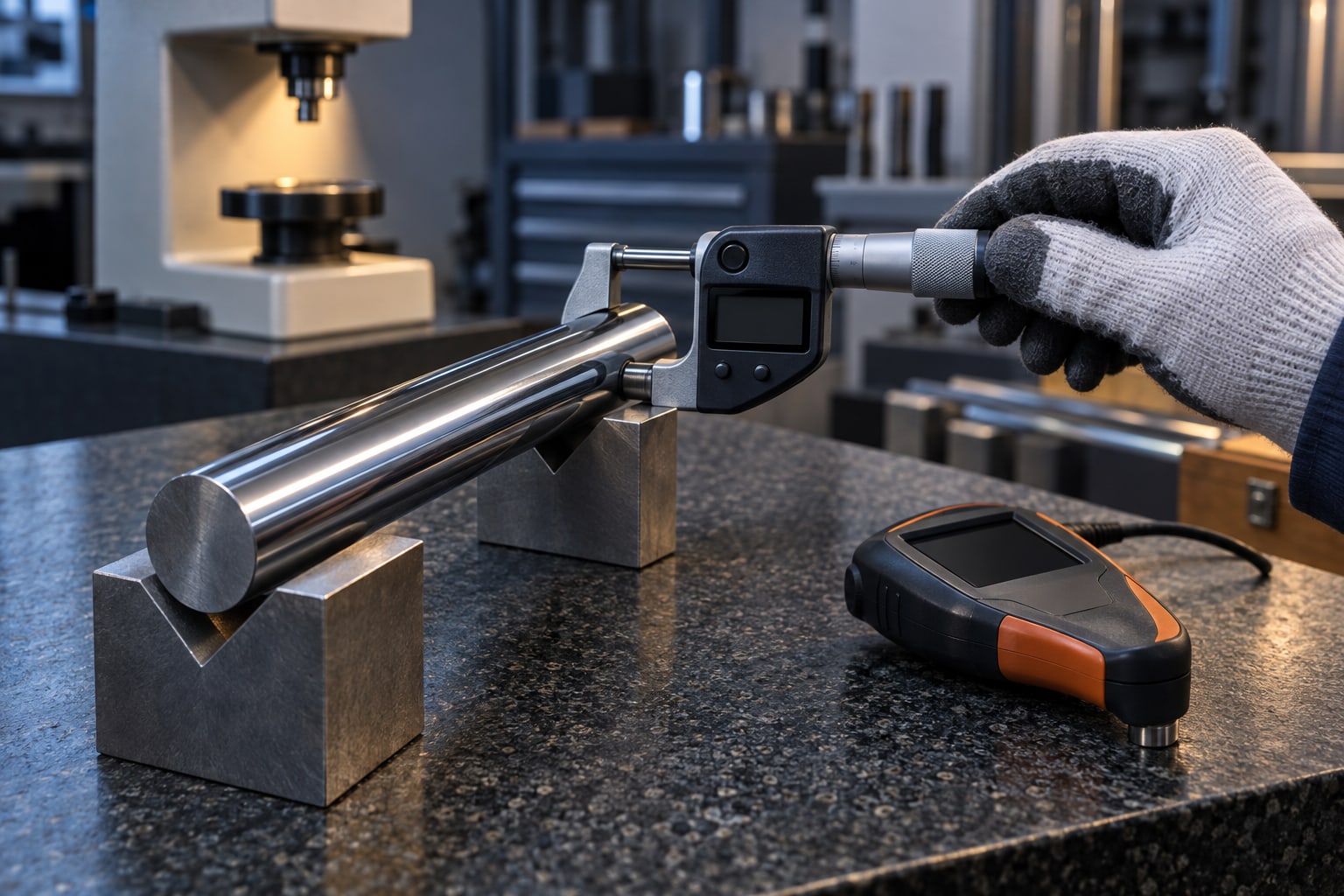

Mitutoyo micrometers, 0–100 mmInspection: digital micrometer, 0.001 mmDigital micrometer, 25–50 mmDigital micrometer, 75–100 mm
Mitutoyo micrometersDiameter and tolerance; digital, 0.001 mm, 0–100 mm in four ranges
Coating thickness gauge
Coating thickness gaugeChrome layer per side, re-checked before packing
Rockwell hardness tester (manufacturer photo)Manufacturer photo
Rockwell hardness testerQ&T surface hardness and induction-hardened case
Handheld XRF spectrometer (manufacturer photo)Manufacturer photo
Handheld XRF spectrometerCr, Mo and other alloy elements, to tell 40Cr and 42CrMo from grade 45; carbon is taken from the mill certificate

IN-HOUSE INSPECTION

What we measure before a bar leaves

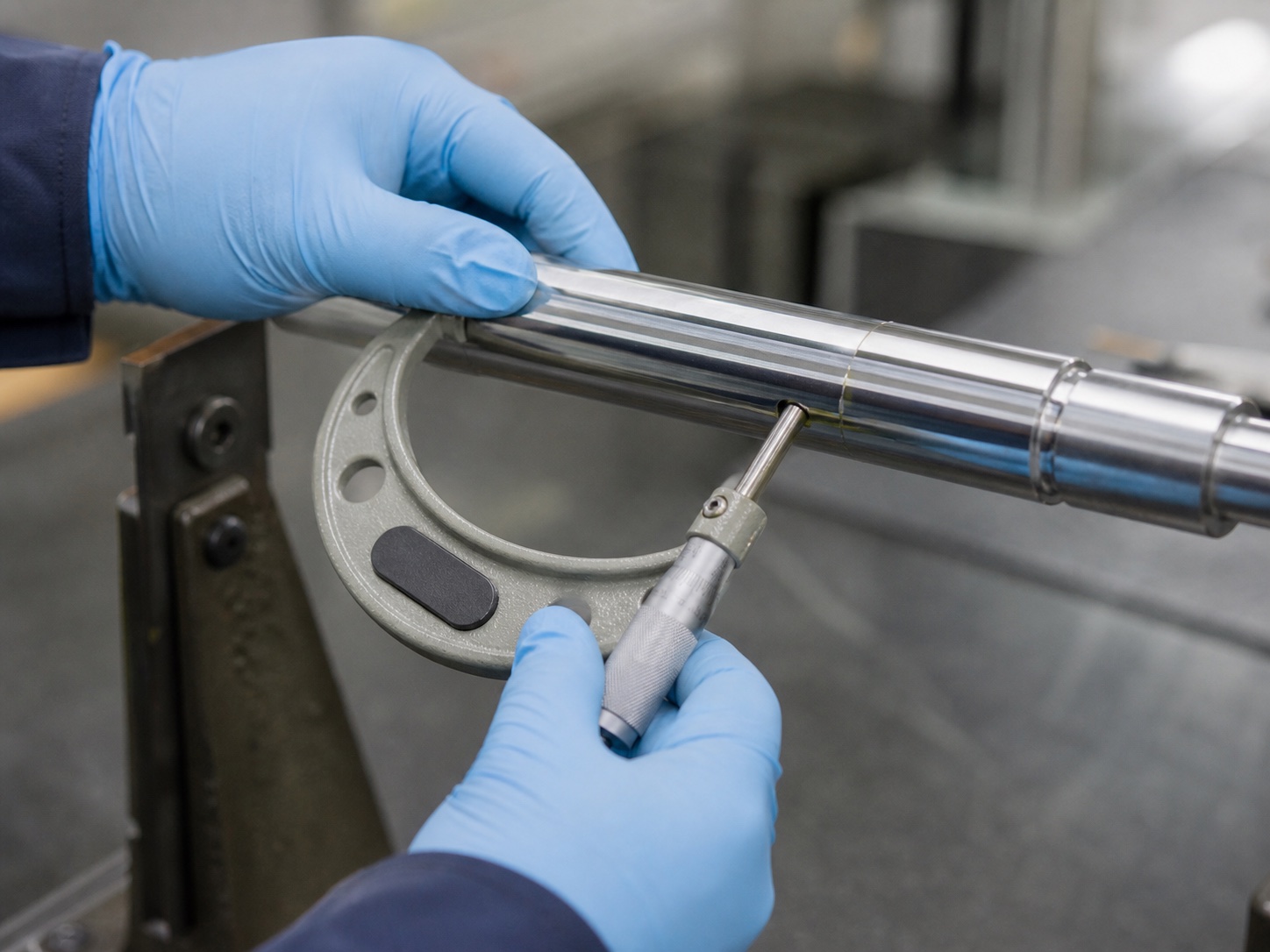

  • Mitutoyo micrometersDiameter and tolerance
  • Coating thickness gaugeHard-chrome thickness
  • Rockwell hardness testerQ&T and induction-hardened hardness
  • Handheld XRF spectrometerAlloy elements (Cr, Mo) to verify 40Cr and 42CrMo; carbon is taken from the mill certificate

Ultrasonic flaw detection, metallography and salt-spray testing are carried out by accredited third-party laboratories when an order requires them.

SIX CHECKPOINTS

A quality chain from inquiry to delivery

01

Requirement & drawing

Confirm the grade or reference grade, heat-treatment condition, dimensions, tolerances, surface treatment and application.

02

Incoming material

Check steel grade and size against the order, with handheld spectrometer (XRF) checks of alloying elements where required.

03

Process control

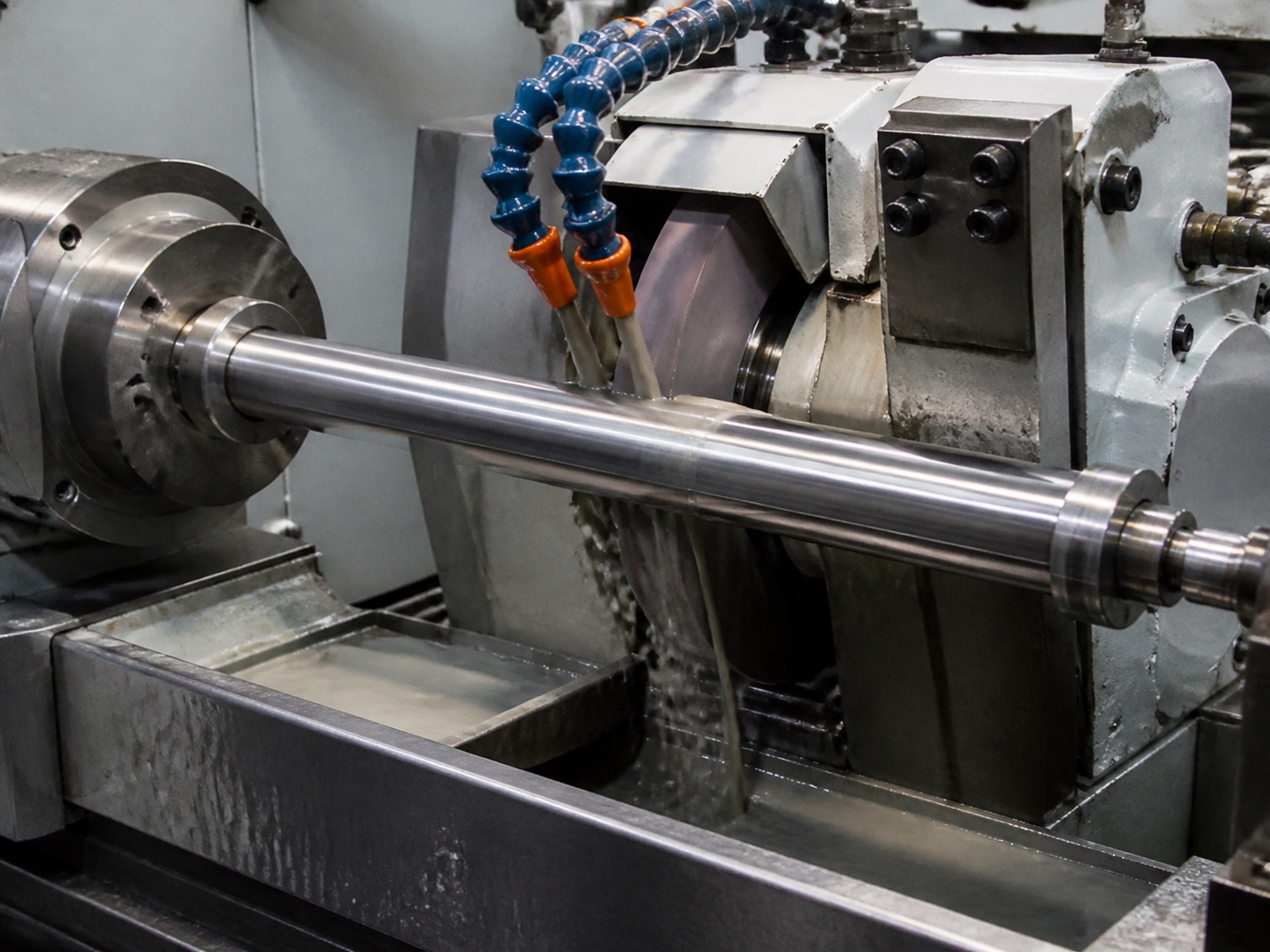

Turn critical dimensions, grinding, heat-treatment and plating requirements into checks at each step.

04

Partner handover

When chrome-plated parts return from the partner plant, re-check chrome thickness, diameter and surface.

05

Final inspection

Check dimensions, hardness, appearance and any specified items against the order, then mark the bars.

06

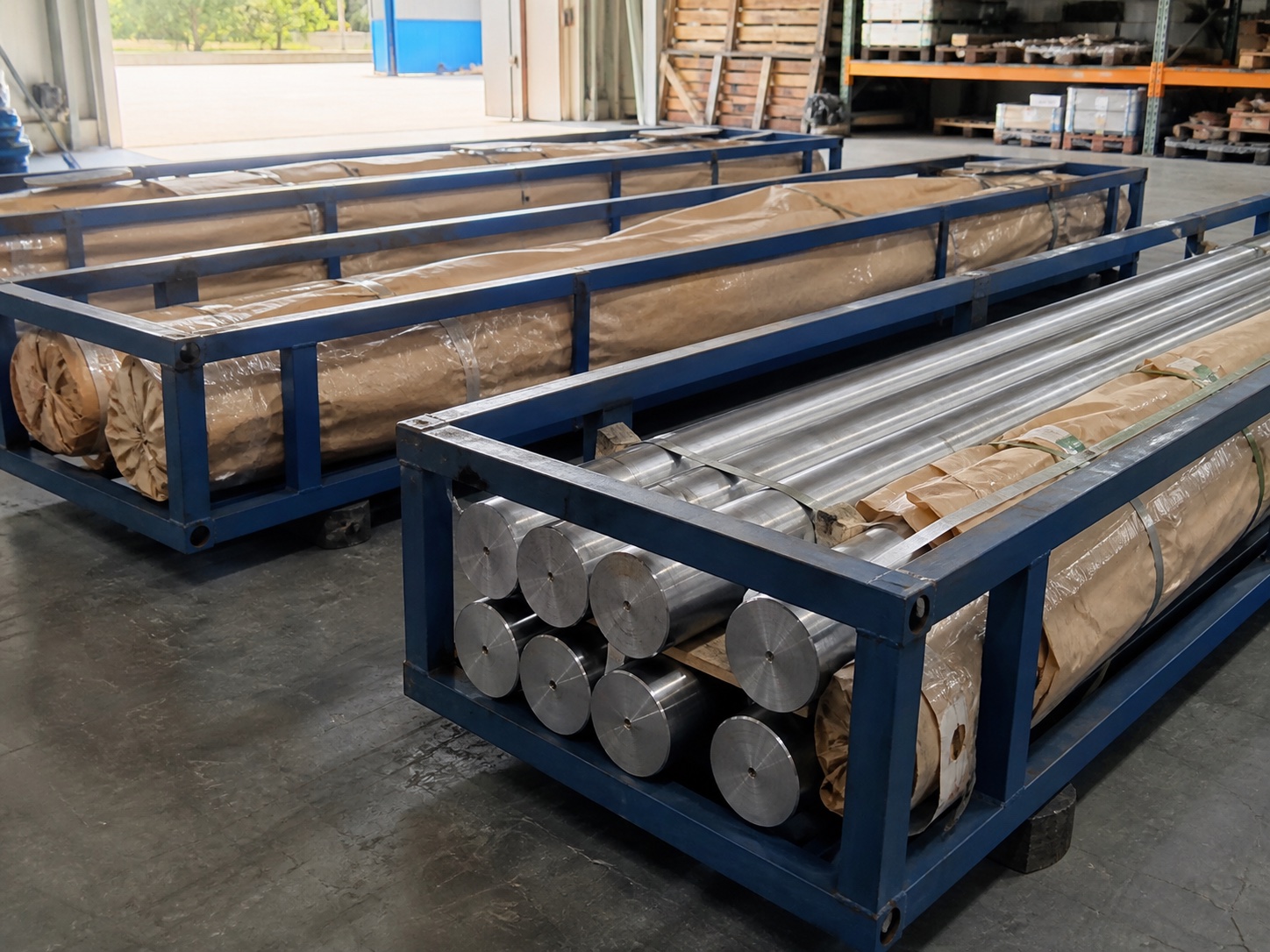

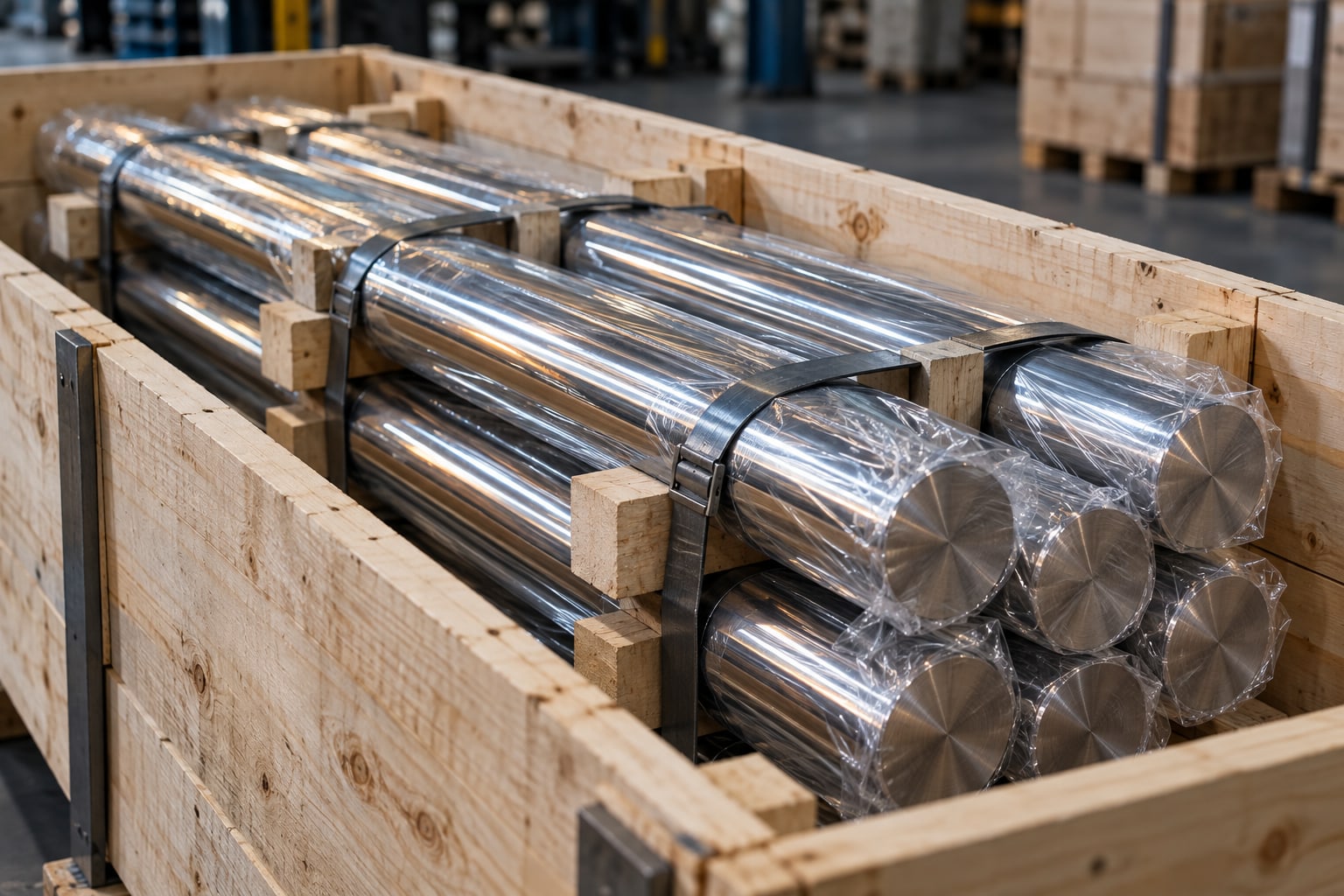

Packing & after-sales

Pack for the surface and the transport route. Delivery issues are reviewed against the order, photos and measurements.

TEST REPORTS

Need order-specific testing?

Existing reports cover the sample bars tested. If your order needs specific tests, list them in your RFQ; we agree the method, items and report format in the quotation and can commission third-party testing for the order.

Send test requirements or an RFQ
