Piston rods for hydraulic and pneumatic cylinders; guide posts and mechanisms; hydraulic and moving components; wear-resistant sliding fits.
45 steel

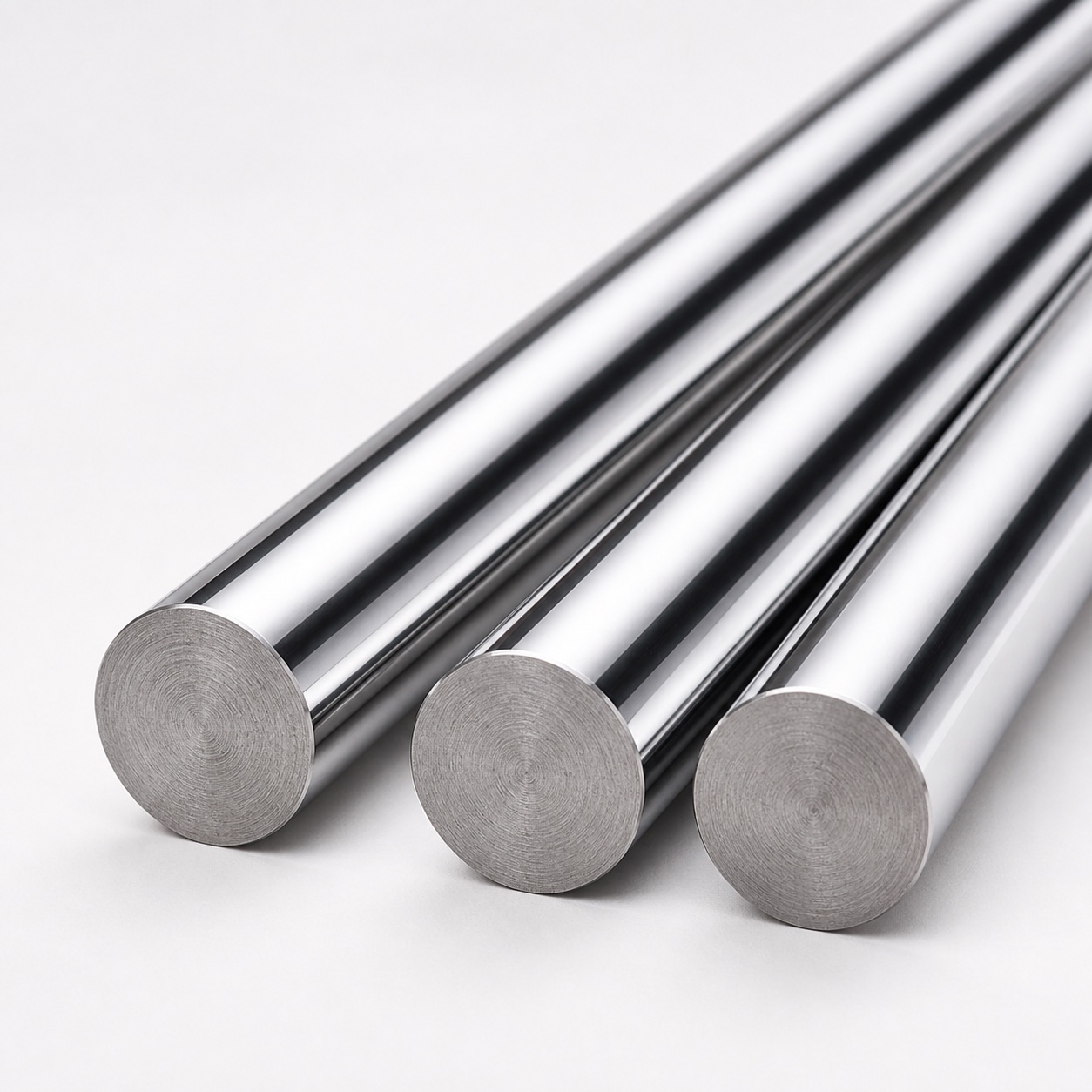

45 Steel Induction-Hardened Chrome Shaft
Induction hardened before hard chrome plating for applications that need higher surface wear resistance and stable guidance.
Inquire about this product




SPECIFICATIONS
45 Steel Induction-Hardened Chrome Shaft: standard specification
Standard specification. Other sizes, tolerances and chrome layers are quoted against your drawing.
| Grade | Grade 45 to GB/T 699-2015 · comparable, for reference only: C45, S45C, SAE 1045 |
|---|---|
| Diameter | Standard range Ø4–130 mm, up to Ø200 mm made to order (cold drawn to Ø28, peeled from Ø30) |
| Tolerance | Ø4–11: −0.02/−0.05 mm · from Ø12: 0/−0.02, −0.01/−0.03 or −0.02/−0.05 mm |
| Hardness | Induction-hardened case ≥ HRC55, ≈ 2 mm deep; chrome hardness can reach HV800+ |
| Hard chrome | 10–50 μm per side, chosen per order |
| Surface roughness | Ra ≤ 0.4 μm |
| Straightness | ≈ 0.1 mm/m from Ø25 · ≈ 0.2 mm/m below Ø25 |
| Length & cutting | Full bars 4 m, 6 m, 7.5 m or 8.1 m; CNC saw cut to length from 200 mm (≈ 3 mm allowance), ends left as sawn |
| Certificates & testing | Steel mill certificate for each heat, forwarded unaltered; foreign grades named here are for reference only; third-party testing commissioned per order on request |
If substantial turning, milling or drilling is required after supply, review the effect of the hardened case and chrome before selection.
ABOUT THIS BAR
45 Steel Induction-Hardened Chrome Shaft: how it is made and when to choose it
A grade 45 steel bar for piston rods and guide shafts, induction hardened to a case of at least HRC55 and about 2 mm deep, then polished, hard chrome plated and final polished. The hardness sits at the surface, under the chrome, where seals and guides run.
Forming, roll straightening, centerless grinding and induction hardening are done in the Yixin workshop. Hard chrome plating is done by a long-term partner plant to our specification and re-checked by Yixin on return.
Test evidence on a July 2026 sample bar: Jiangsu Yinshi Inspection & Testing measured an effective case depth of SHD475 = 1.91 mm (HV1 757–783 at 0.1–0.8 mm below the surface). Results apply to the sample tested.
Choose it when the rod surface takes the wear and guidance load and little machining follows after supply. If the rod ends need heavy machining, or the load calls for a quenched-and-tempered base, see our Q&T chrome-plated bars in 45, 40Cr and 42CrMo.
PROCESS ROUTE
How this bar is made
Dashed steps are done by long-term partner plants to Yixin's specification; all others run in the Yixin workshop.
- 01Cold drawing (≤Ø28) / peeling (Ø30+)
- 02Roll straightening
- 03Centerless grinding
- 04Induction hardening
- 05Polishing
- 06Hard chrome
- 07Final polishing
Yixin workshopLong-term partner plant, to Yixin's specificationAll products can be CNC-sawn to length
RELEVANT PROCESS CAPABILITY
Technical baselines relevant to this product route
Typical process capability. Final values for each size are fixed on the confirmed drawing, specification and order.
TECHNICAL GUIDES
Technical topics to review before ordering
PRODUCT FAQ
Questions buyers ask about the 45 Steel Induction-Hardened Chrome Shaft
01Is the case depth different from the chrome thickness?
Yes. They are two different layers. The induction-hardened case is in the steel, at least HRC55 and about 2 mm deep. The hard chrome on top is 10–50 μm per side, chosen per order.
02Can you supply finished piston rods with threads?
We supply the chrome bar, cut to length. End machining such as threads, chamfers or centre holes is done by a long-term partner plant to our specification and assessed from your drawing.
03Is the chrome corrosion resistant? What about salt spray?
Salt-spray performance is not part of our standard specification. If your design needs a salt-spray rating, tell us in the RFQ: we specify a thicker chrome layer and can have the order tested by a third-party laboratory.
04What diameter range do you offer for this shaft?
Standard range Ø4–130 mm, up to Ø200 mm made to order: cold drawn up to Ø28 and peeled from Ø30. Tolerance from Ø12 can be 0/−0.02, −0.01/−0.03 or −0.02/−0.05 mm; Ø4–11 is −0.02/−0.05 mm.
05Do you have test reports for this product?
Yes. The case-depth report from Jiangsu Yinshi Inspection & Testing (report 2026-YS-26070183118-3-2) is shown on our Quality page. It describes the sample tested, not every delivery.
SERVICE
Export terms
How standard orders are handled. Volume and special requirements are written into the quotation.
- Minimum order
- 1 t per order (different sizes can be combined); 20–50 kg sample orders (the sample fee is refunded with your order; samples go by international express, freight paid by the buyer)
- Lead time
- Cut-to-length from stock 3–5 days · non-standard diameters 7–10 days · custom heat treatment 10–20 days · 42CrMo 7–10 days, plus sea-freight booking; thicker chrome layers are quoted per order
- Trade & payment
- FOB Shanghai or Ningbo · T/T only, 50% deposit, balance before shipment (no L/C)
- Packing
- Export: bars wrapped in bubble film and packed in wooden cases; domestic: bubble film and cotton-rope ties. No steel straps on finished bars, so the surface is not marked; your brand can be printed on the packing
- Documents
- Commercial invoice, packing list and steel mill certificate for each heat (forwarded unaltered); certificate of origin arranged per order; third-party inspection on request
- Response
- Quotation reply within one working day
Inquire about 45 Steel Induction-Hardened Chrome Shaft
Send diameter, length, quantity or a drawing. We reply with grade, tolerance, chrome thickness and lead time.
