45 steel, quenched and tempered

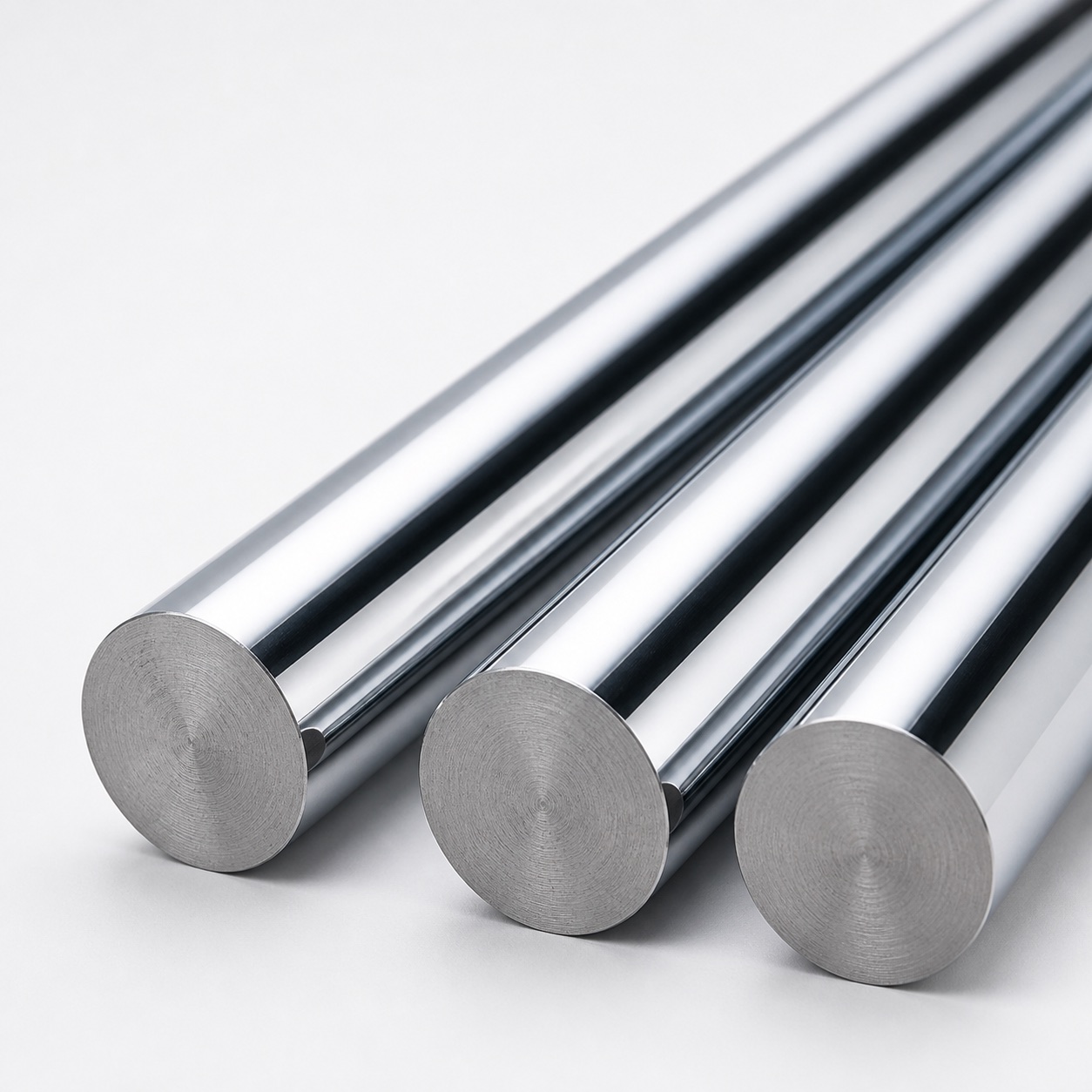

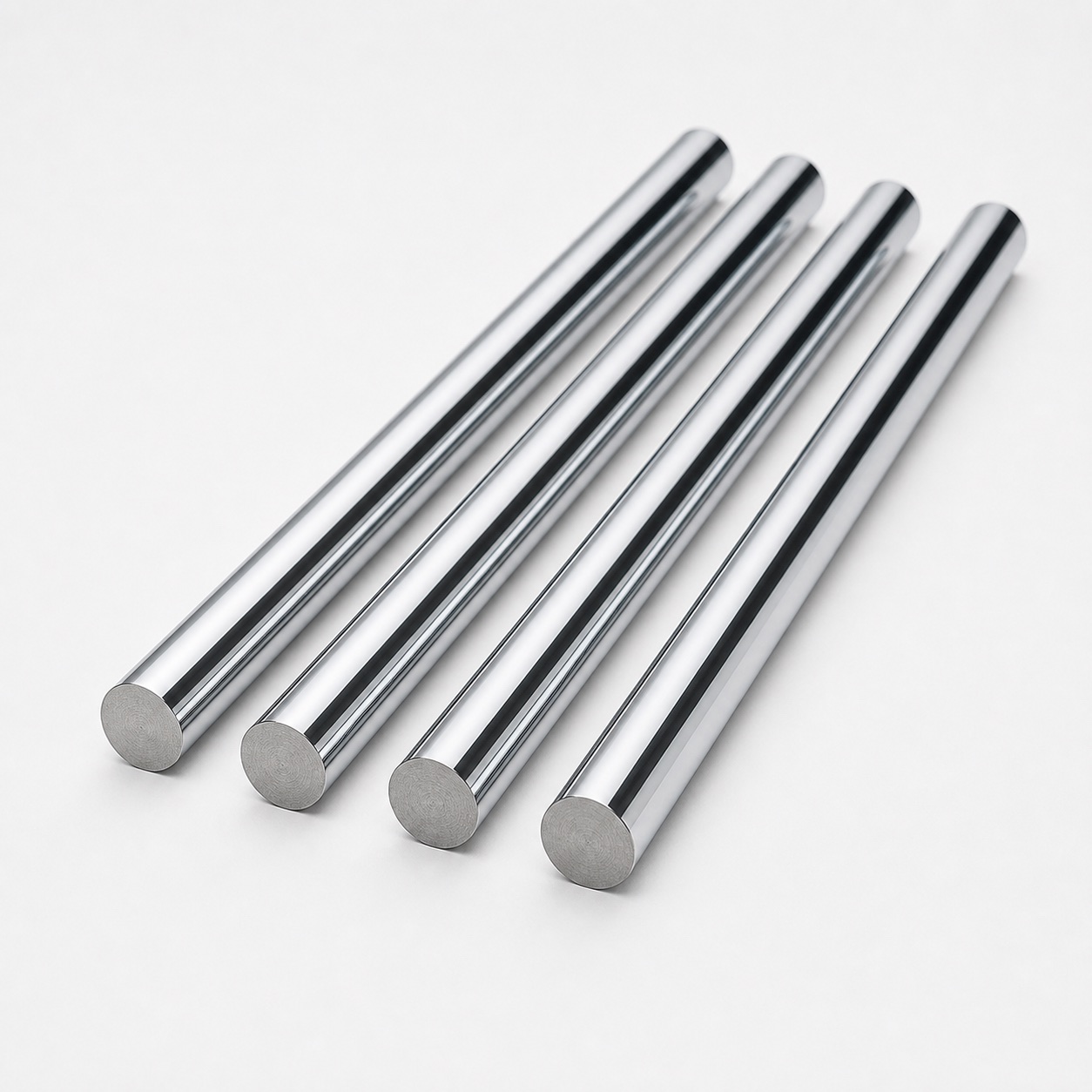

45 Steel Q&T Chrome-Plated Bar

Quenched-and-tempered base material finished with hard chrome for combined core properties, dimensional control and surface wear resistance.

Inquire about this product
45 Steel Q&T Chrome-Plated Bar
45 steel, quenched and tempered

SPECIFICATIONS

45 Steel Q&T Chrome-Plated Bar: standard specification

Standard specification. Other sizes, tolerances and chrome layers are quoted against your drawing.

GradeGrade 45 to GB/T 699-2015 · comparable, for reference only: C45, S45C, SAE 1045
DiameterØ8–140 mm (Q&T from Ø8)
ToleranceØ8–11: −0.02/−0.05 mm · from Ø12: 0/−0.02, −0.01/−0.03 or −0.02/−0.05 mm
HardnessQ&T base: surface hardness HRC25–28 or HRC28–32 (chosen per order); the core is softer because grade 45 has limited hardenability
Hard chrome10–50 μm per side, chosen per order
Surface roughnessRa ≤ 0.4 μm
Straightness≈ 0.1 mm/m from Ø25 · ≈ 0.2 mm/m below Ø25
Length & cuttingFull bars 4 m, 6 m, 7.5 m or 8.1 m; CNC saw cut to length from 200 mm (≈ 3 mm allowance), ends left as sawn
Certificates & testingSteel mill certificate for each heat, forwarded unaltered; foreign grades named here are for reference only; third-party testing commissioned per order on request
TYPICAL APPLICATIONS

Piston rods whose ends you plan to machine; loaded guide components; mechanical moving parts; chrome shafts requiring a Q&T core.

SELECTION NOTE

If you only need a wear-resistant chrome surface and not the strength and toughness of a Q&T core, a soft or induction-hardened chrome shaft may cost less.

ABOUT THIS BAR

45 Steel Q&T Chrome-Plated Bar: how it is made and when to choose it

A grade 45 steel bar with an induction quenched-and-tempered base, centerless ground, polished and hard chrome plated. It has no induction-hardened case: choose it when you want a Q&T base under the chrome and plan to machine the rod ends.

The Q&T base has a surface hardness of HRC25–28 or HRC28–32, chosen per order; grade 45 has limited hardenability, so the core is softer than the surface. Q&T and chrome requirements are confirmed separately.

Forming, induction Q&T, roll straightening, grinding and polishing are done in the Yixin workshop. Hard chrome plating is done by a long-term partner plant to our specification, followed by final polishing and inspection by Yixin.

PROCESS ROUTE

How this bar is made

Dashed steps are done by long-term partner plants to Yixin's specification; all others run in the Yixin workshop.

45 steel Q&T chrome-plated bar
  1. 01Cold drawing (≤Ø28) / peeling (Ø30+)
  2. 02Induction Q&T
  3. 03Roll straightening
  4. 04Centerless grinding
  5. 05Polishing
  6. 06Hard chrome
  7. 07Final polishing

Yixin workshopLong-term partner plant, to Yixin's specificationAll products can be CNC-sawn to length

RELEVANT PROCESS CAPABILITY

Technical baselines relevant to this product route

010.02 mmtolerance band to drawing
0210–50 μmchrome per side, chosen per order
03HV800+chrome hardness capability

Typical process capability. Final values for each size are fixed on the confirmed drawing, specification and order.

PRODUCT FAQ

Questions buyers ask about the 45 Steel Q&T Chrome-Plated Bar

01How is this different from the induction-hardened chrome shaft?

This bar is quenched and tempered, not induction hardened. It gives a tougher base and leaves the rod ends easier to machine. The induction-hardened shaft puts a case of at least HRC55 under the chrome for wear and guidance.

02What hardness does the Q&T base have?

Surface hardness HRC25–28 or HRC28–32, chosen per order. Grade 45 has limited hardenability, so the core is softer than the surface. For a stronger base, see our 40Cr (HRC28–35) and 42CrMo (HRC30–38) Q&T chrome bars.

03How thick is the chrome?

10–50 μm per side, chosen per order. State the thickness on your drawing or RFQ; it is confirmed in the quotation.

SERVICE

Export terms

How standard orders are handled. Volume and special requirements are written into the quotation.

Minimum order
1 t per order (different sizes can be combined); 20–50 kg sample orders (the sample fee is refunded with your order; samples go by international express, freight paid by the buyer)
Lead time
Cut-to-length from stock 3–5 days · non-standard diameters 7–10 days · custom heat treatment 10–20 days · 42CrMo 7–10 days, plus sea-freight booking; thicker chrome layers are quoted per order
Trade & payment
FOB Shanghai or Ningbo · T/T only, 50% deposit, balance before shipment (no L/C)
Packing
Export: bars wrapped in bubble film and packed in wooden cases; domestic: bubble film and cotton-rope ties. No steel straps on finished bars, so the surface is not marked; your brand can be printed on the packing
Documents
Commercial invoice, packing list and steel mill certificate for each heat (forwarded unaltered); certificate of origin arranged per order; third-party inspection on request
Response
Quotation reply within one working day

Inquire about 45 Steel Q&T Chrome-Plated Bar

Send diameter, length, quantity or a drawing. We reply with grade, tolerance, chrome thickness and lead time.
