How to Verify a Chinese Shaft Supplier Before the First Order

What should a supplier show you before you place an order?

A verifiable supplier confirms grade, condition and dimensions on a drawing, states which operations run in its own plant and which are subcontracted, and issues standard export documents with the goods.

Start with the paperwork. For bar stock, the usual set is a commercial invoice, a packing list and a mill certificate, with a certificate of origin arranged per order when your customs broker needs one. Check that the grade written on the mill certificate is the grade on your drawing, and that the condition is spelled out rather than implied — induction hardened, quenched and tempered, or neither. A supplier that cannot say which of the three applies to your item has not yet read your requirement.

Then ask who performs each step. Yixin Precision Machinery (Changzhou) runs a plant in Changzhou with in-house cold drawing, peeling, roll straightening, induction Q&T, induction hardening, centerless grinding, polishing and CNC cutting. Hard chrome plating and machining are done by long-term partner plants to Yixin's specification. A supplier that names the subcontracted step, and can show the specification the partner works to, is easier to audit than one that describes every operation as in-house. The purpose of the question is traceability, not the size of the building.

Finally, confirm how the bars travel. Bubble film and wooden cases for sea freight (no steel straps on finished bars) are the usual choice. Packing agreed by email and packing that arrives are not always the same thing, so put it on the order.

How do you verify the chrome layer and hardness?

Fix two items on the drawing — chrome thickness in μm per side and hardness with its scale — and check both on a sample or a test report before the first production order.

Chrome thickness is normally quoted per side, not as a total diameter build-up, and the two are easy to mix up in a quotation. Yixin hard chrome is specified per order within 10–50 μm per side. If a quotation gives only a diameter increase, ask for the per-side figure, then confirm which diameter the supplier is measuring: plated or finished.

Hardness needs a scale and a location. Yixin quotes a chrome hardness capability of HV800+, which describes the chrome layer. The substrate underneath may be a soft base, an induction-hardened case, or a quenched and tempered bar, and those routes behave differently under load. Ask which layer a hardness value refers to, which scale was used, and where the reading was taken. A single HRC number with no location tells you very little about a chrome-plated shaft.

Salt-spray performance is not part of the standard specification. Where a rating is required, we specify a thicker chrome layer and can have the order tested by a third-party laboratory.

How do you verify diameter tolerance, straightness and surface finish?

Each of these three requirements needs a number and a measuring condition before a supplier can quote it, and the answer should be the same on the drawing, the order confirmation and the inspection record.

Diameter is the first item to pin down. A fit class such as h6 is a starting point, but the actual band should be written per size range. Yixin works to −0.02/−0.05 mm for Ø4–11 mm (Q&T bars start at Ø8, so their small band is Ø8–11; the 40Cr Q&T ground bar starts at Ø5); from Ø12 mm the options are 0/−0.02 mm, −0.01/−0.03 mm or −0.02/−0.05 mm. Straightness is quoted over a length: approximately 0.1 mm/m from Ø25 mm, and approximately 0.2 mm/m below that. Surface finish is quoted as Ra: Ra ≤ 0.4 μm on chrome and Ra ≤ 0.8 μm on ground bar. Ask how many bars per lot are measured and where along the bar the readings are taken.

The table below shows the difference between a statement you cannot check and one you can.

Should you order a sample before the first production order?

Yes, if the sample follows the same production route as the order and is measured before it ships. A sample that skips the hardening or plating step tells you little about the bars that follow it.

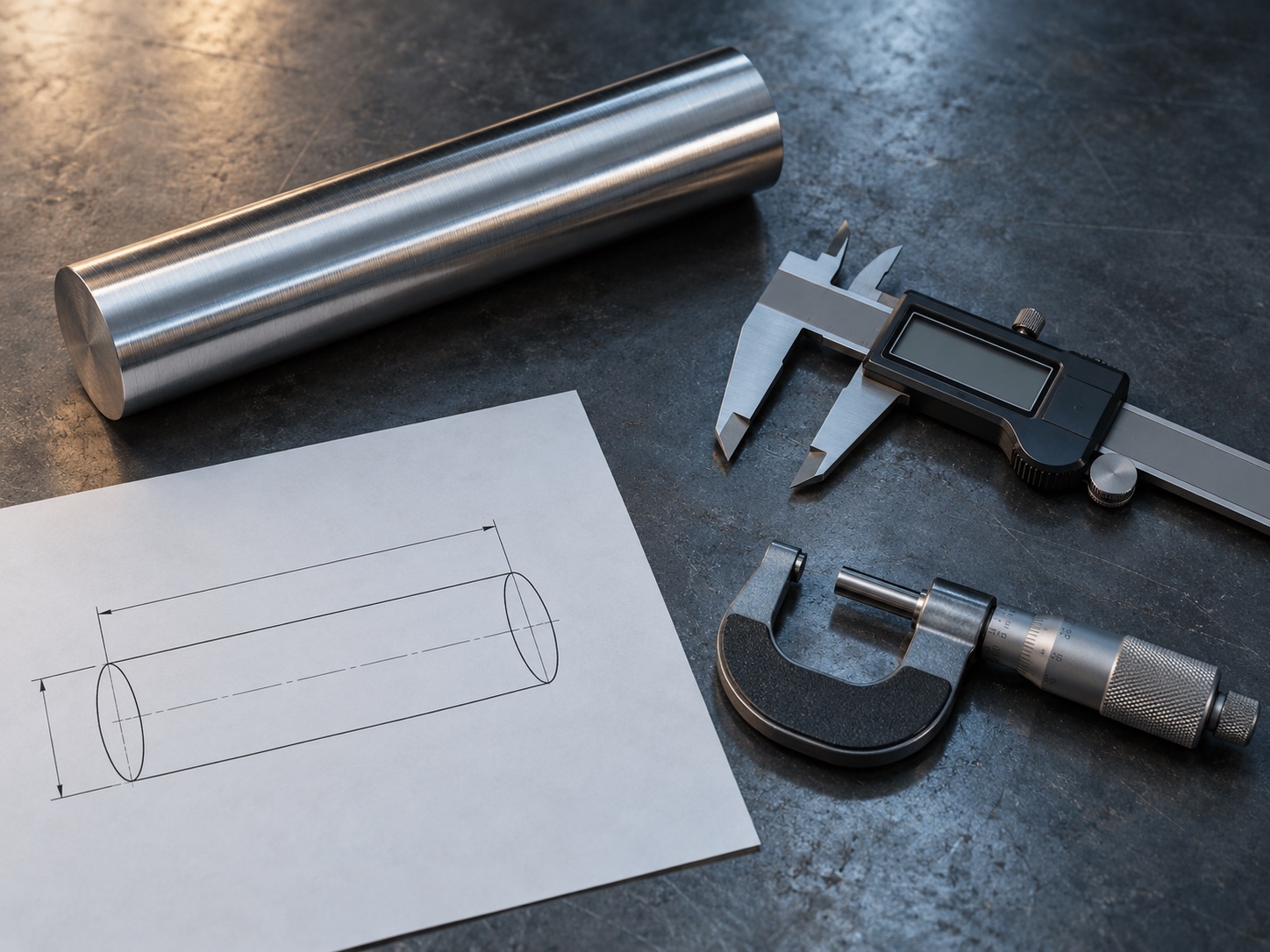

A sample order can be small. Yixin's minimum order is 1 t per order, and 20–50 kg sample orders are available. On a sample of that size you can check diameter at several points along the bar, straightness over a 1 m length, Ra on the finished surface, the chrome thickness per side, and the hardness scale recorded on the report. Look at the cut ends as well: all products can be CNC-sawn to length, so the sample should arrive at the length you specified, with a clean cut.

Keep the sample and its measurement record. When the first full order arrives, repeating those measurements on a few bars gives you a comparison that is tied to your drawing rather than to a catalogue page.

What do lead times and trade terms tell you?

Quoted lead times show whether a supplier has separated stock items from made-to-order items, and trade terms show who arranges freight and documents.

Yixin quotes cut-to-length from stock at 3–5 days, non-standard diameters at 7–10 days, and custom heat treatment at 10–20 days, plus sea-freight booking; 42CrMo 7–10 days. Trade is FOB Shanghai or Ningbo; T/T, 50% deposit with the order, balance before shipment. If a first quotation carries one lead time for every item, ask which items are cut from stock and which need a production step, because that answer decides when you book freight.

Check the grade and condition list behind those lead times as well. Yixin sells nine catalogue products covering 45 steel, 40Cr and 42CrMo; 42CrMo is supplied in quenched and tempered condition only, made to order. On a light-duty guide rod, a 45 Steel Chrome-Plated Soft Shaft and an induction-hardened grade may both appear in a quotation at different prices; ask which condition is on the drawing before you compare them.

What to put in your RFQ

• Grade and condition: Grade 45, 40Cr or 42CrMo, and whether the bar is induction hardened, quenched and tempered, or neither.
• Diameter range and the tolerance band for each size, written as numbers rather than as a fit class.
• Chrome requirement in μm per side, plus the hardness scale for the chrome layer and, where it matters, for the substrate.
• Straightness per meter and Ra on the finished surface, with the measuring length stated.
• Length and cut tolerance, including a note that bars are to be CNC cut to length if you need fixed lengths.
• Quantity: total tonnage, plus a sample quantity if you want bars checked first. Yixin's minimum is 1 t per order, with 20–50 kg sample orders available.
• Packing: bubble film and wooden cases for sea freight (no steel straps on finished bars).
• Documents and terms: commercial invoice, packing list and mill certificate, plus a certificate of origin if required; trade term FOB Shanghai or Ningbo and payment T/T.

Summary

Verifying a Chinese shaft supplier before the first order comes down to numbers on paper and measurements on metal. Ask for the grade and condition, the tolerance band, the chrome thickness per side, the hardness scale, straightness per meter and the surface finish — each as a value, not a description. Ask which operations are in-house and who specifies the subcontracted ones. Order a small sample that follows the production route, keep its measurement record, and compare the first shipment against it. When the drawing, the quotation, the documents and the sample agree, you have enough to place a first order.
